Setup PPTP VPN on Windows 7


Create VPN connection

  • Click on the Network icon in system tray and Open Network and Sharing Center. Step 1. Click on the Network icon in system tray and Open Network and Sharing Center.
  • Click Set up a new connection or network. Step 2. Click Set up a new connection or network.
  • Select Connect to a workplace and create a new connection (If you will see a new window). Step 3. Select Connect to a workplace and create a new connection (If you will see a new window).
  • Click Use my Internet connection (VPN). Step 4. Click Use my Internet connection (VPN).
  • Enter your Hostname (look PPTP info text file in the user dashboard) as Internet address and give the connection a name in Destination name field. Select the Don't connect now checkbox and click Next. Step 5. Enter your Hostname (look PPTP info text file in the user dashboard) as Internet address and give the connection a name in Destination name field. Select the Don't connect now checkbox and click Next.
  • Enter your login info (look PPTP info text file in the user dashboard). Select the Remember this password checkbox and click Create. Close the next window. Step 6. Enter your login info (look PPTP info text file in the user dashboard). Select the Remember this password checkbox and click Create. Close the next window.
  • Click on the Network icon in system tray. Right click on the newly created VPN connection and click Properties. Step 7. Click on the Network icon in system tray. Right click on the newly created VPN connection and click Properties.

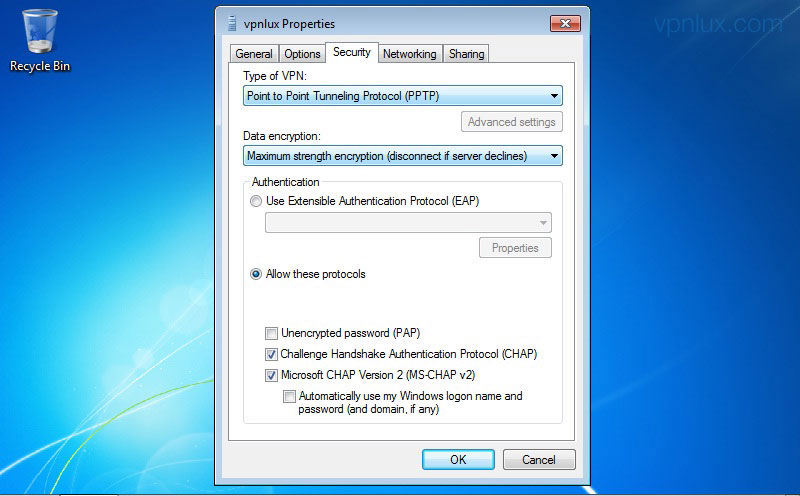

  • Select the Security tab and change the Type of VPN to Point to Point Tunneling Protocol (PPTP) and the Data encryption to Maximum strength encryption. Click OK. Step 8. Select the Security tab and change the Type of VPN to Point to Point Tunneling Protocol (PPTP) and the Data encryption to Maximum strength encryption. Click OK.
  • The VPN connection is ready. Now click on Network Icon in system tray, select your newly setup VPN connection and hit Connect. Step 9. The VPN connection is ready. Now click on Network Icon in system tray, select your newly setup VPN connection and hit Connect.
  • Click Connect. Step 10. Click Connect.NB! Never use remember password option on public computers! If someone connects with your details when you online, you will be disconnected!
  • Click on the Network icon in system tray and hit Disconnect when you finish. Step 11. Click on the Network icon in system tray and hit Disconnect when you finish.
  • If you see the Set Network Location screen, click on Public location. Step 12. If you see the Set Network Location screen, click on Public location.

Delete VPN connection

  • Click on the Start button and type view network connections in the search field and hit Enter. Step 1. Click on the Start button and type view network connections in the search field and hit Enter.
  • Right click on the VPN Connection and click Delete. Step 2. Right click on the VPN Connection and click Delete.
